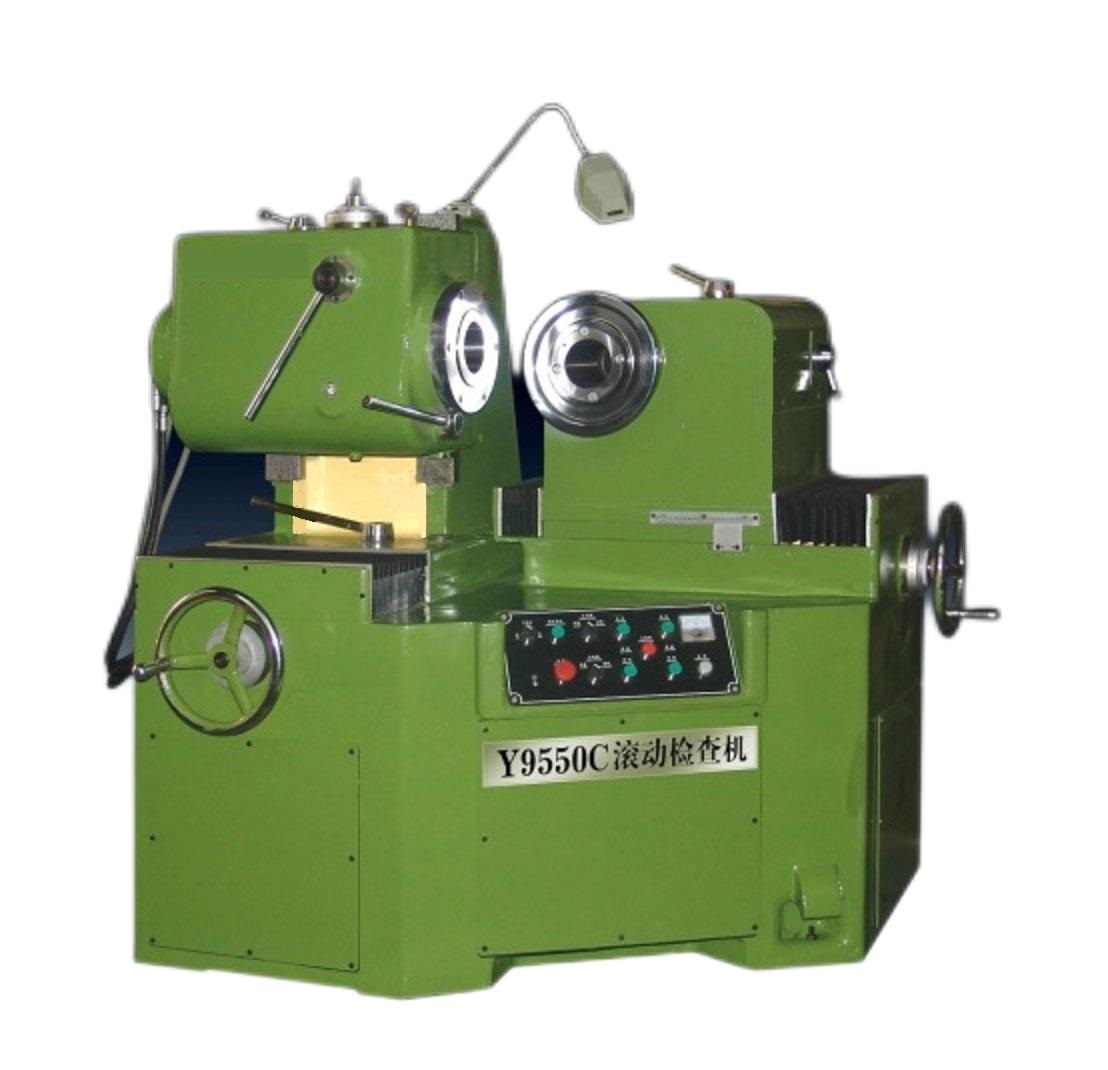

Y9550C HYPOID TESTER
I. Machine Applications
With the rolling method of a pair of gears or a gear and a master gear, this machine tests the tooth bearings of straight bevel, spiral bevel and hypoid gears of intersecting shafts
The following tests may be performed on this machine:
1) the final tests of a gear pair to determine the tooth bearing and the best mounting distance;
2) to determine the necessary setting data for the gear cutting machines;
3) continuous tests during the production to guarantee the uniformity of the gears produced, and
4) to gain the new setting data for the gear cutting machines through comparisons of the testing results before and after the heat treatment.
II. Machine Specifications
Max. diameter of work | 500mm | ||
Shaft angle | 90° | ||
Offset of gear head | Up | 75 mm | |
Down | 75 mm | ||
Distance between pinion spindle axis to end face of gear spindle | 120~310 mm | ||
Distance between gear spindle axis to end face of pinion spindle | 120~320 mm | ||
Speed of pinion spindle | 720 or 1440rpm | ||
Power of main motor | 3 or 4.5KW | ||
Taper holes | Diameter of large end | 100 mm | |
Taper | 1：20 | ||
Depth of taper hole | 180 mm | ||
Clamping force | 17000Nm | ||
Overall dimensions (L x W x H) | 1560×1422×1690 mm | ||
Dimensions of electrical cabinet （L×W×H） | 600×360×1235 mm | ||
Weight | ~3000kg | ||
